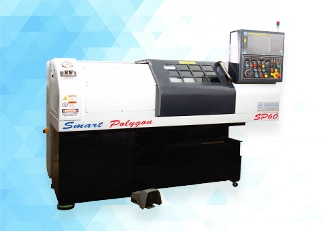

CNC POLYGON TURNING Machine Model: Smart Polygon-SP60 Smart Polygon Model : SP60 Machine is Fanuc CNC Controlled High Precision Polygon Turning Machine, A2-8 Spindle with Built in Sleeve & Belt Transmission, Work head & Tool Head Connected with Specially designed High Precision LM Rail - Block Universal Joint with Zero backlash, THK Hi-Precision LM Guideways & Ball screw for Linear movements, A60 & A42 Built-in Sleeve with Hyd-Collet Clamping System for Job Clamping and with High quality Machine Guard & Safety covers etc., Standard Features: Maximum Work Holding Diameter: 60 mm Minimum Work Holding Diameter :3 mm Maximum Across flat allows : 80 mm Minimum Across flat allows :3 mm Maximum Milling Length Allows :80 mm or above with supporting device (Optional) Maximum length of part :Possible with supporting Guide. Milling accuracy & repeatability : 0.010 mm (10 micron) Polygon Profile :Even Number Spindle Capacity : A2 – 8 Spindle RPM : 450 rpm X-Axis Stroke : 100 mm Z-Axis Stroke : 100 mm Job Clamping : Hydraulic Collet- A42 & A60 Built-in Sleeve Control System : Fanuc- OiTF Plus CNC System Control Voltage : 3 Phase, 415VAC Machine Total Power : 5.5 KW
